Parabolic
ANT-5530X
ANT-5530X is a parabolic dish antenna covering 4.7–6.4 GHz, with Mimosa C5X adaptor and an included pole-mounting kit.
- Frequency range
- 4.7–6.4 GHz
- Gain
- 30 dBi
- Diameter
- 700 mm
- Beamwidth
- 4.5° (typical)
Technical specifications
| Frequency range | 4.7–6.4 GHz |
|---|---|
| Gain | 30 dBi |
| 3 dB beamwidth | 4.5° (typical) |
| VSWR | 1.5:1 (typical) |
| Impedance | 50 Ω |
| Input power | 25 W |
| RF connector | Mimosa C5X adaptor |
| Front-to-back ratio | 37 dB |
| Size / diameter | 700 mm |
| Weight with bracket | 4.7 kg |
| Operating wind speed | 130 km/h |
| Survival wind speed | 200 km/h |
| Operating temperature | −50 °C to +70 °C |
| Pole diameter | 25–60 mm |
| Polarization | Dual |
| Mounting | Included / pole mount |

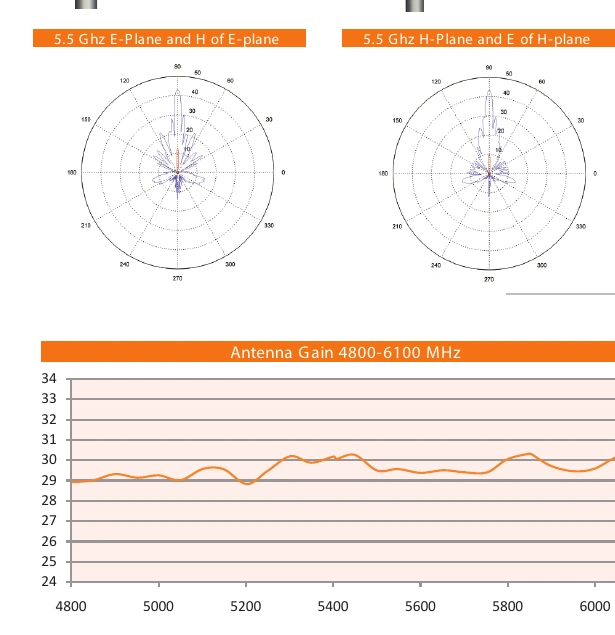

RF performance
Original manufacturer plots. Refer to each graph for its measured frequency range.
