Horn
ANT-HR5515N
ANT-HR5515N is a dual-polarized horn antenna covering 4.8–6.4 GHz, with 2 × N-Female and an included pole-mounting kit.
- Frequency range
- 4.8–6.4 GHz
- Gain
- 15 dBi (typical)
- Diameter
- 150 mm
- Beamwidth
- 35° (typical)
Technical specifications
| Frequency range | 4.8–6.4 GHz |
|---|---|
| Gain | 15 dBi (typical) |
| 3 dB beamwidth | 35° (typical) |
| VSWR | 1.3:1 (typical) |
| Impedance | 50 Ω |
| Input power | 100 W |
| RF connector | 2 × N-Female |
| Front-to-back ratio | 25 dB |
| Size / diameter | 150 mm |
| Weight with bracket | 2.0 kg |
| Operating wind speed | 170 km/h |
| Survival wind speed | 230 km/h |
| Operating temperature | −50 °C to +70 °C |
| Pole diameter | 25–60 mm |
| Polarization | Dual |
| Mounting | Included / pole mount |

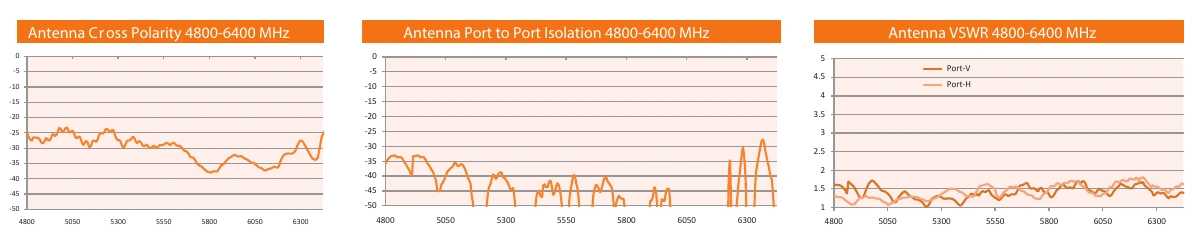

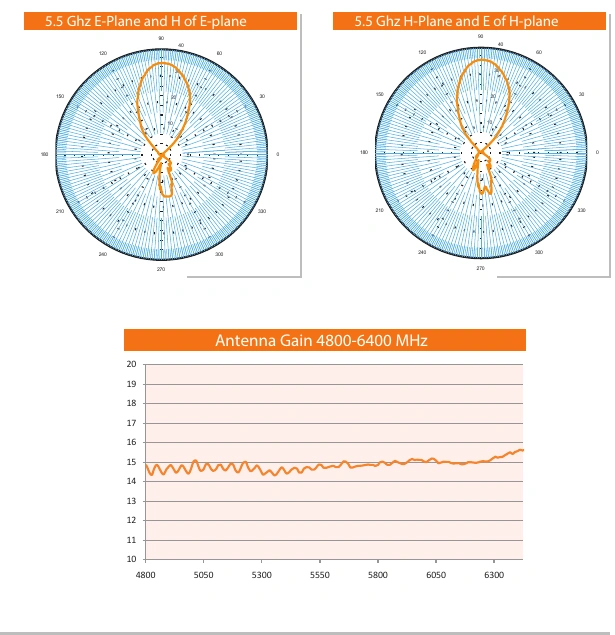

RF performance
Original manufacturer plots. Refer to each graph for its measured frequency range.
