ANT-HP1140M
ANT-HP1140M is a dual-polarized high-performance dish covering 10–12 GHz, with Mimosa B11 interface and an included pole-mounting kit.
- Frequency range
- 10–12 GHz
- Gain
- 40 dBi
- Diameter
- 130 mm
- Beamwidth
- 1.5° (typical)
The datasheet lists a size/diameter of 130 mm. This value requires manufacturer confirmation.
The original gain graph heading names 4800–6100 MHz, while its horizontal axis and product specification refer to the 10–12 GHz band. Refer to the original PDF and confirm this labeling discrepancy.
Download datasheet ↓Technical specifications
| Frequency range | 10–12 GHz |
|---|---|
| Gain | 40 dBi |
| 3 dB beamwidth | 1.5° (typical) |
| VSWR | 1.2:1 (typical) |
| Impedance | 50 Ω |
| Input power | 25 W |
| RF connector | Mimosa B11 interface |
| Front-to-back ratio | 59 dB |
| Size / diameter | 130 mm Under review |
| Weight with bracket | 20.5 kg |
| Operating wind speed | 110 km/h |
| Survival wind speed | 170 km/h |
| Operating temperature | −50 °C to +70 °C |
| Pole diameter | 25–60 mm |
| Polarization | Dual |
| Mounting | Included / pole mount |
RF performance

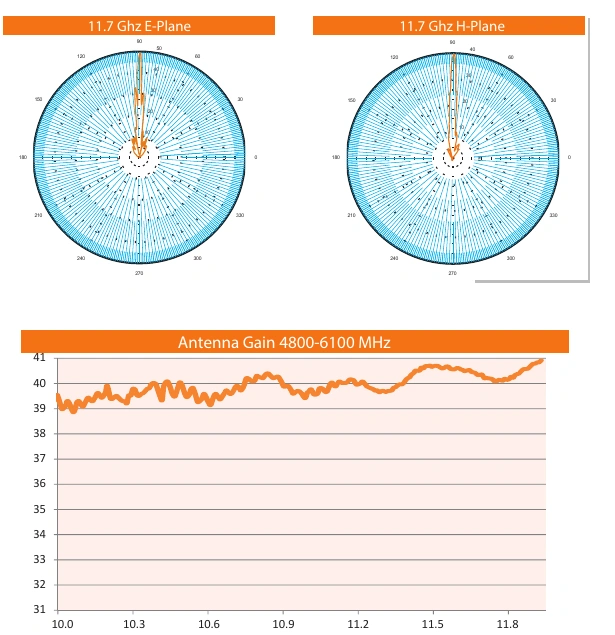

Original manufacturer plots. Refer to each graph for its measured frequency range.
