High performance
ANT-HP1137M
ANT-HP1137M is a dual-polarized high-performance dish covering 10–12 GHz, with Mimosa B11 interface and an included pole-mounting kit.
- Frequency range
- 10–12 GHz
- Gain
- 37 dBi
- Diameter
- 880 mm
- Beamwidth
- 2° (typical)
The original gain graph heading names 4800–6100 MHz, while its horizontal axis and product specification refer to the 10–12 GHz band. Refer to the original PDF and confirm this labeling discrepancy.
Download datasheet ↓Technical specifications
| Frequency range | 10–12 GHz |
|---|---|
| Gain | 37 dBi |
| 3 dB beamwidth | 2° (typical) |
| VSWR | 1.2:1 (typical) |
| Impedance | 50 Ω |
| Input power | 25 W |
| RF connector | Mimosa B11 interface |
| Front-to-back ratio | 55 dB |
| Size / diameter | 880 mm |
| Weight with bracket | 13.5 kg |
| Operating wind speed | 130 km/h |
| Survival wind speed | 200 km/h |
| Operating temperature | −50 °C to +70 °C |
| Pole diameter | 25–60 mm |
| Polarization | Dual |
| Mounting | Included / pole mount |

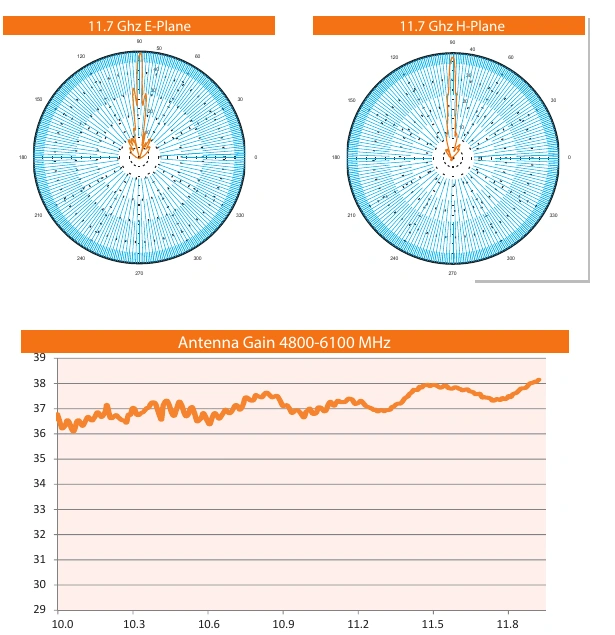

RF performance
Original manufacturer plots. Refer to each graph for its measured frequency range.
